Multi-Layer Ceramic Capacitor (MLCC) for Flexible Electronics

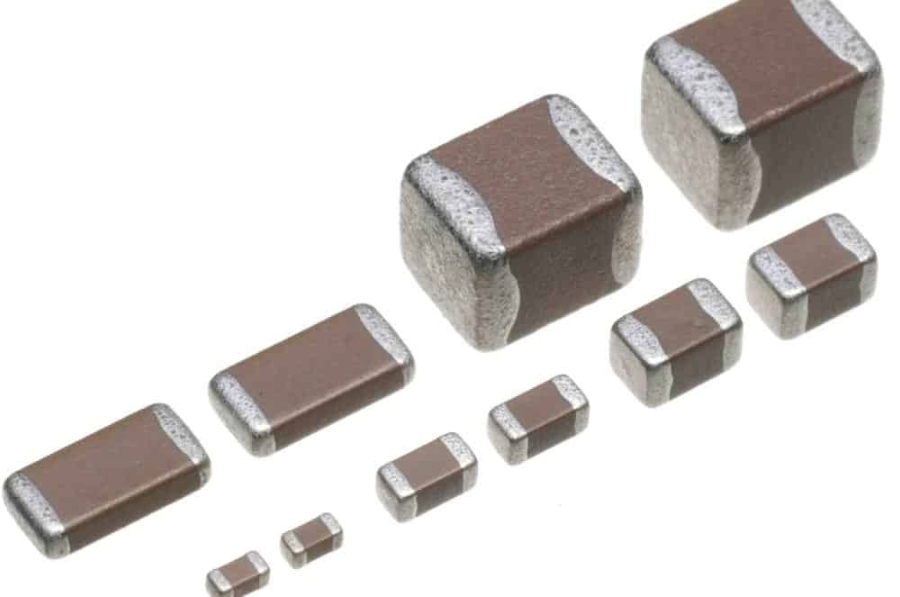

Multilayer ceramic capacitors (MLCC) are very small valued capacitors consisting of multiple layers of ceramic material that act as a dielectric. MLCCs are highly preferred in satellite and military applications due to their high capacitance and low cost. Through the filtering of unwanted noise and ripples, MLCCs are used in voltage regulators and power supplies. MLCCs act as interference preventers in decoupling circuits to isolate one circuit from another. MLCCs are used to stabilize the frequency of oscillators and provide accurate timing signals in timer circuits. They are also used to tune circuits to specific frequencies and reject unwanted signals in RF filters.

Manufacturing Methodology

Innovations in ceramic materials for MLCCs focus on improving performance, reducing size, and enhancing reliability. The following innovative ceramic materials are used in multilayered capacitors:

Solid-State Reaction Materials

Barium Carbonate (BaCO₃)
Titanium Dioxide (TiO₂)
Reagents for Fluxing

Dielectric Polymer-ceramic Composites-Hybrid Materials
Nanostructured Ceramics

Solid-State Reaction Method

Barium Titanate serves as a foundation for materials research and innovation in the field of ceramics and electronic materials.

Preparation:

Ingredients:

Barium Carbonate (BaCO₃):
Titanium Dioxide (TiO₂):
Reagents for Fluxing: lithium carbonate (Li₂CO₃)

Procedure:

Weighing and Mixing:

Weigh the required amounts of barium carbonate and titanium dioxide based on the stoichiometric ratio of BaTiO₃.

Calcination:

The mixed powder is subjected to a calcination process at elevated temperatures (typically around 1200 to 1400°C) in an oxidizing atmosphere. This step is essential for the formation of Barium Titanate.

Milling:

The calcined powder is milled again to achieve a fine and uniform particle size distribution. This step promotes better sintering during the subsequent stages.

Pressing:

The milled powder is pressed into the desired shape (pellets or other forms) using a hydraulic press. This step is crucial for shaping the material before sintering.

Sintering:

The pressed powder is sintered at high temperatures (typically around 1300 to 1500°C) in a controlled atmosphere.

Cooling:

The sintered material is gradually cooled to room temperature to prevent thermal stresses.

Characterization:

The obtained barium titanate is characterized using various techniques, such as X-ray diffraction (XRD), scanning electron microscopy (SEM), and other methods to ensure the desired composition and crystal structure

Expected properties:

Barium Titanate exhibits a polycrystalline structure, meaning it is composed of many individual crystalline grains.
The grains are often irregularly shaped and can vary in size. Larger grains generally result in higher dielectric constants.
Barium Titanate has a perovskite crystal structure, characterized by a three-dimensional arrangement of oxygen, barium, and titanium atoms.
The crystal structure may undergo phase transitions at certain temperatures, affecting the material’s behavior.
Grain boundaries are interfaces between adjacent grains. They are important in determining the electrical and mechanical properties of the material.
The dielectric constant (εr) of Barium Titanate is influenced by its particle size. Smaller particle sizes can contribute to higher dielectric constants, which is advantageous for increasing the capacitance of the capacitor.

Dielectric Polymer-Ceramic Composites-Hybrid Materials

Dielectric polymer-ceramic composites are materials that combine the properties of both polymers and ceramics to achieve a balance of electrical, mechanical, and thermal characteristics. These composites are designed to exploit the advantages of each component, resulting in materials with enhanced performance for specific applications

Ingredients:

Polymer Matrix: The polymer component provides flexibility, processability, and mechanical damping. Common polymer matrices include polyethylene, polypropylene, polyvinylidene fluoride (PVDF), and others.
Ceramic Filler: The ceramic component contributes high dielectric constant, thermal stability, and mechanical strength. Common ceramic fillers include barium titanate (BaTiO₃), lead zirconate titanate (PZT), and other ferroelectric or high-permittivity ceramics.

Preparation of Materials:

Melt Blending:

In melt blending, the polymer and ceramic particles are mixed during the melting process. The mixture is heated until the polymer matrix becomes molten, allowing the ceramic particles to disperse uniformly.

Solution Casting:

Solution casting involves dissolving the polymer in a suitable solvent, mixing it with ceramic particles, and then casting the solution into a mold. The solvent is then evaporated, leaving behind a solid composite.

Extrusion:

Extrusion involves forcing a mixture of polymer and ceramic particles through a die to create a continuous shape, such as a film or rod. This process helps in achieving a homogeneous dispersion of ceramic particles.

Injection Molding:

Injection molding is a manufacturing process where a molten mixture of polymer and ceramic is injected into a mold under high pressure. The material solidifies in the mold’s shape.

Hot Pressing:

In hot pressing, a mixture of polymer and ceramic powders is placed in a mold and subjected to both heat and pressure. The combination of temperature and pressure facilitates sintering and compaction.

Nanostructured Ceramics for Capacitors

Nanostructured ceramics have gained attention for their unique properties and potential applications in various fields, including capacitors. The term “nanostructured” refers to materials that have features at the nanometer scale, and these features can lead to enhanced electrical, mechanical, and thermal properties. Here are some aspects related to the use of nanostructured ceramics in capacitors:

High Dielectric Constant: Nanostructured ceramics can exhibit higher dielectric constants compared to their bulk counterparts. The increased surface area and modified electronic structure at the nanoscale contribute to improved capacitive performance.
Reduced Grain Boundaries: Nanostructured ceramics often have smaller grain sizes, resulting in fewer grain boundaries. This can lead to enhanced dielectric strength and reduced dielectric losses, contributing to better overall capacitor performance.
Improved Energy Density: The unique properties of nanostructured ceramics, such as increased surface area and modified electronic behavior, can contribute to higher energy storage densities in capacitors. This is particularly important in applications requiring compact and high-performance energy storage.

In conclusion, the study of the development of MLCC has evolved from a fundamental scientific curiosity to a promising avenue for technological innovation with far-reaching implications across multiple industries. Ongoing research continues to uncover new materials and techniques, bringing us closer to unlocking the full potential of MLCC in our quest for more efficient and sustainable technologies.
