Printer Properties
|
Process
|
Metal fused filament fabrication
|
|
Build Volume
|
300 x 220 x 180 mm
|
|

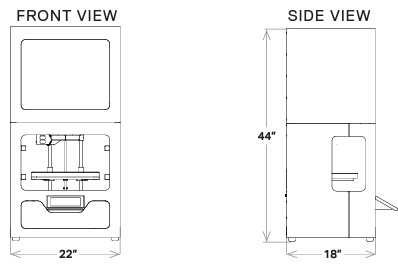

Machine Size
|
575 x 467 x 1,120 mm
|
|
Print Chamber
|
Heated
|
|
Print Bed
|
Heated, vacuum-sealed print sheet, auto bed leveling
|
|
Print System
|
Two nozzles — Metal material and release material
|
|
Materials
|
Metal Material
|
1. Stainless Steel (17-4 PH)
2. H13 Tool Steel
3. A2 Tool Steel
4. D2 Tool Steel
5. Inconel 625
6. Copper
|
|
Release Material
|
Ceramic (consumed at 1:10 ratio to metal spools, on average)
|
|
Media (Spools)
|
Filament fed, bound powder
|
|
Part Properties
|
Max Part Size
|
250 x 183 x 150 mm, 10kg
|
|
Supports
|
Metal material with ceramic release layer
|
|
Layer Height
|
50μm and 125μm post-sinter
|
|
Software
|
Supplied Software
|
Eiger Cloud
|
